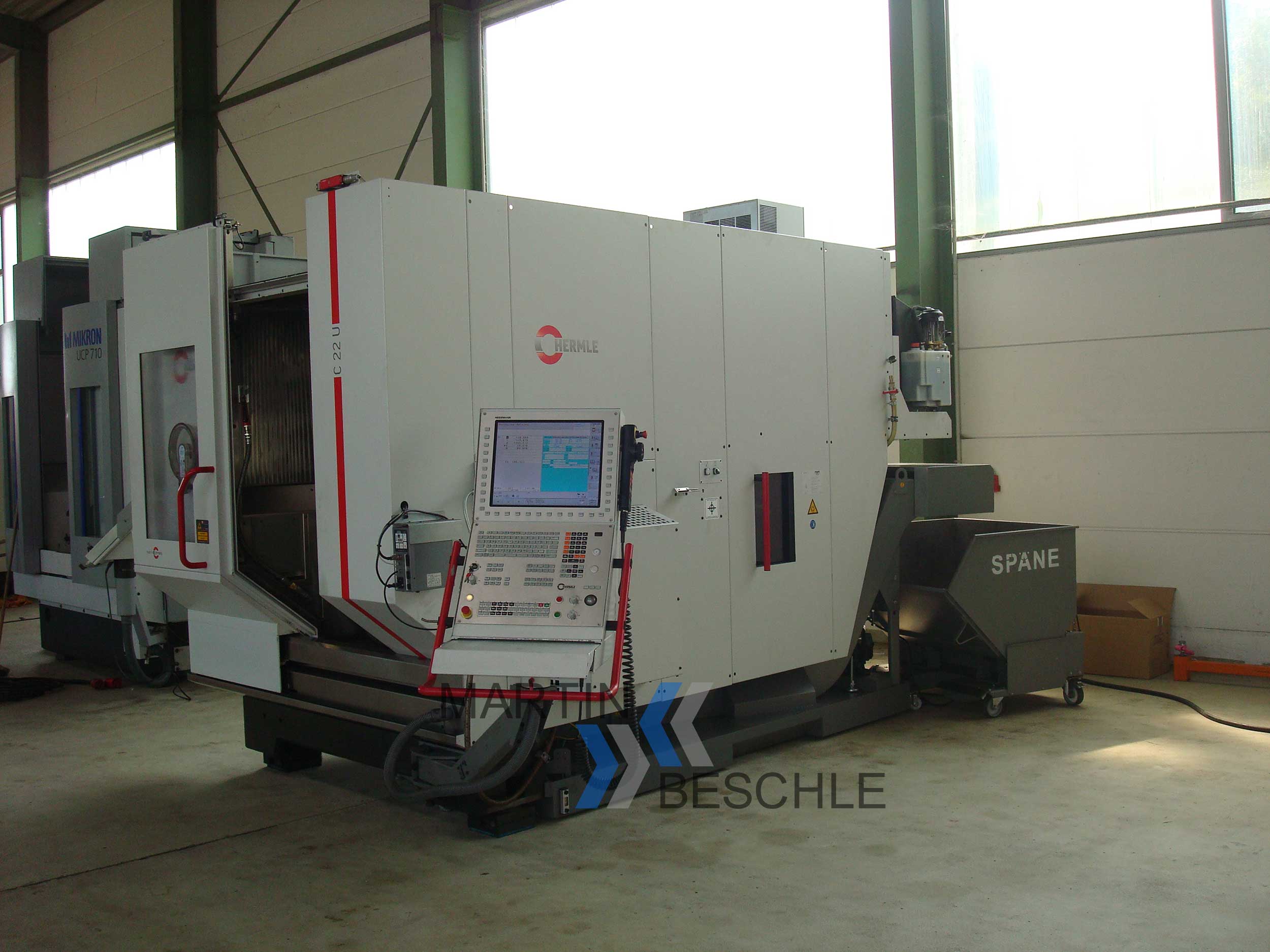

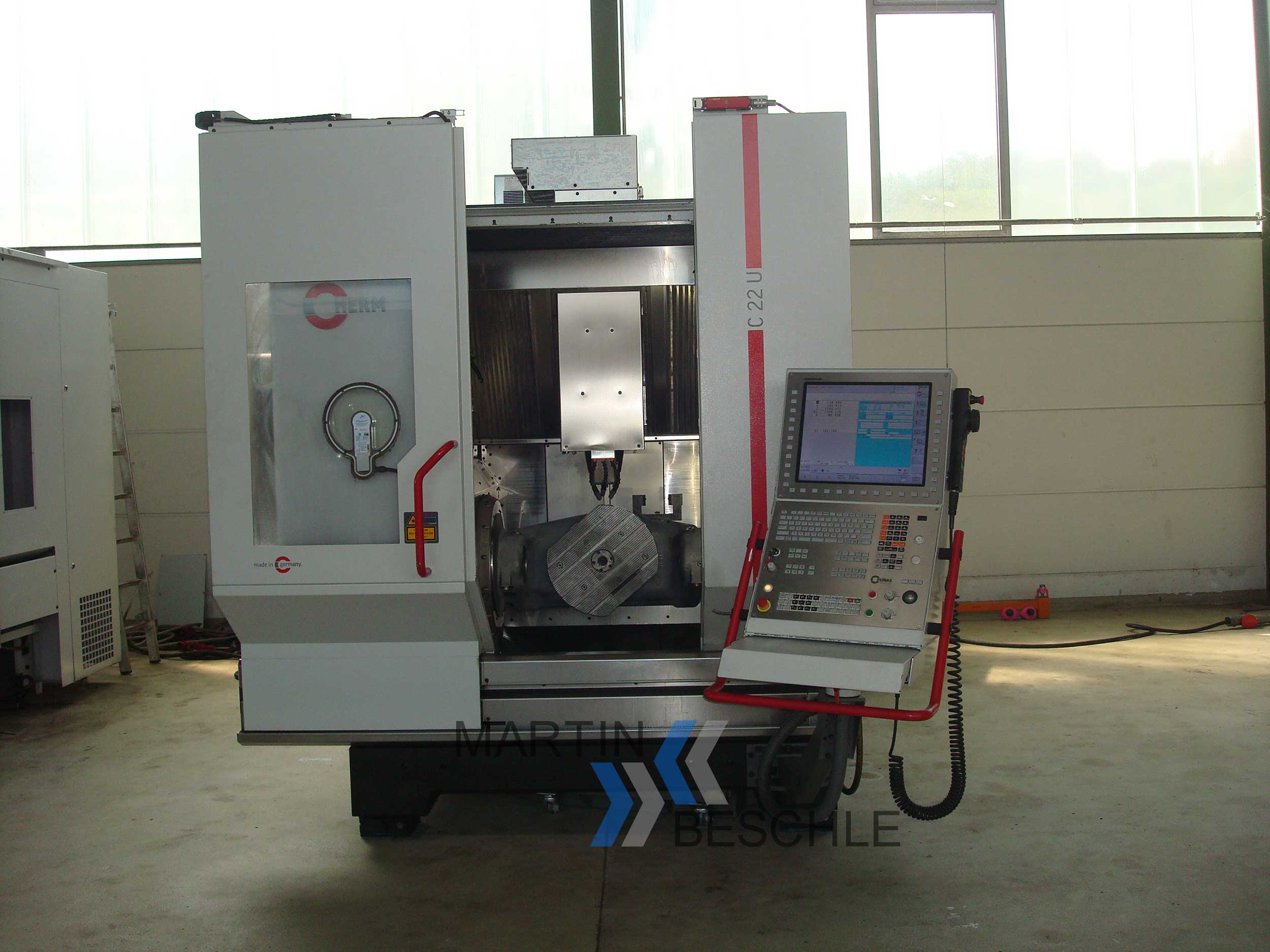

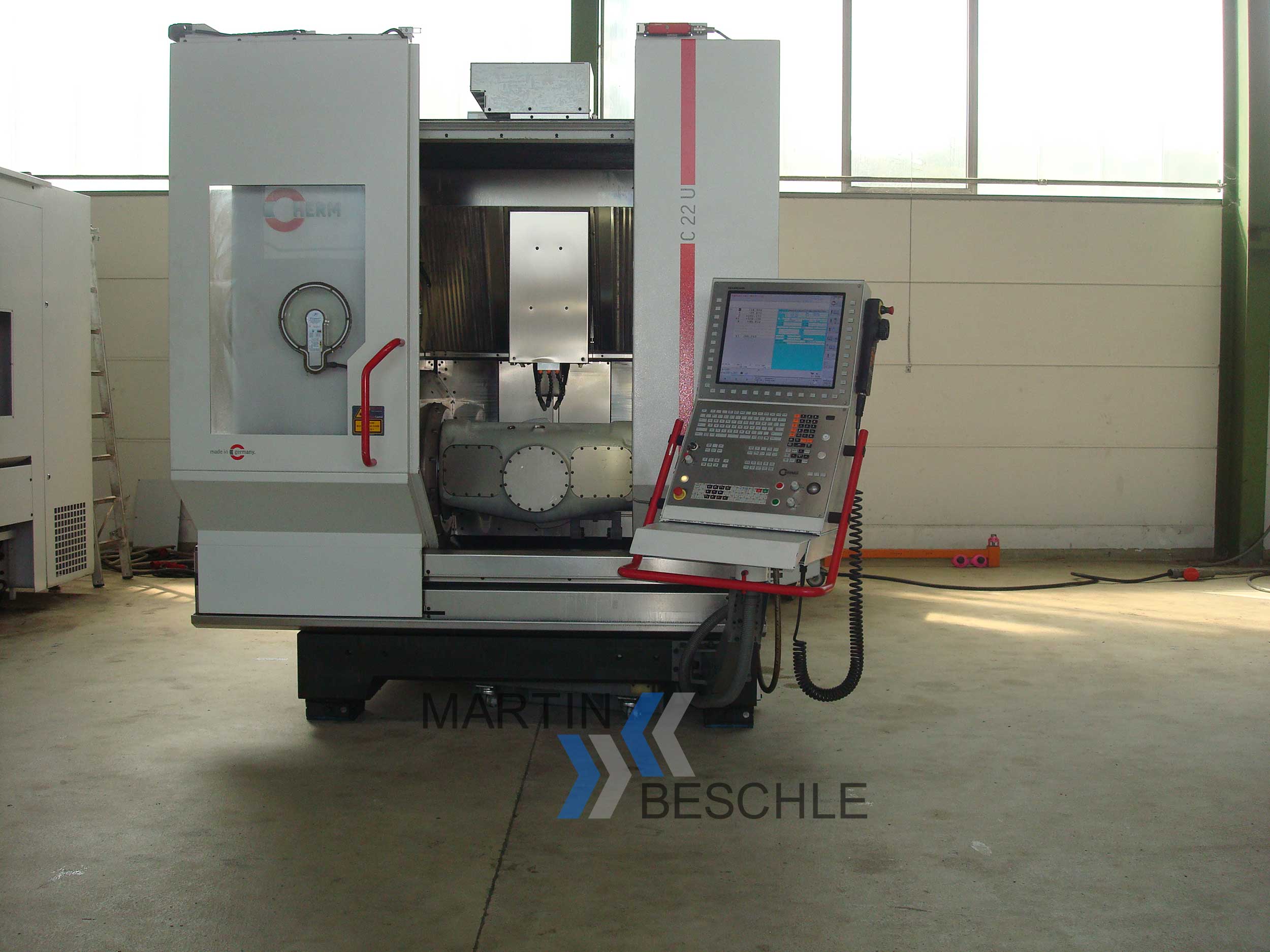

CNC vertical machining centre HERMLE C 22 U

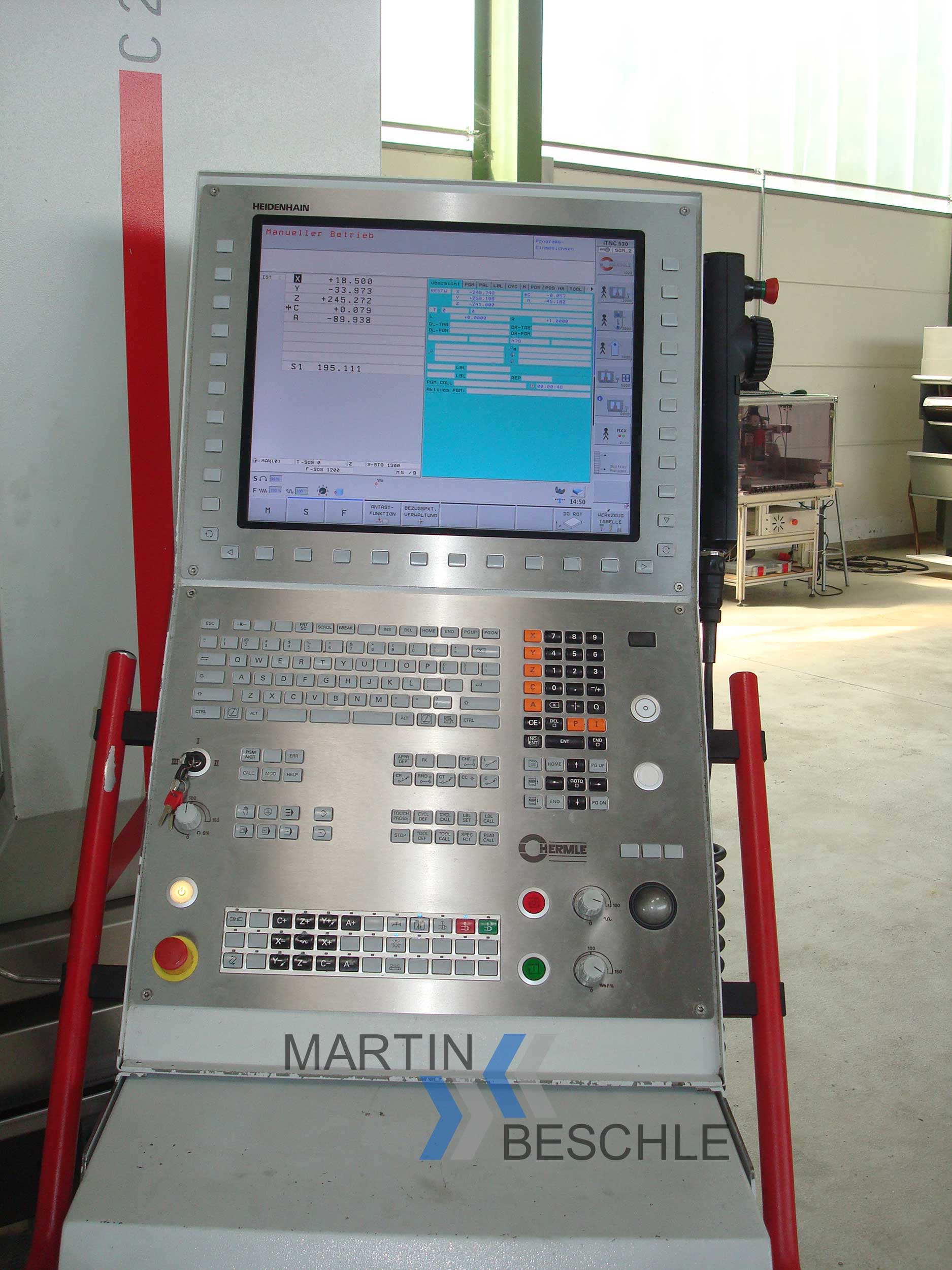

With path control Heidenhain iTNC 530 HSCI
Year of construction: 11 /2014
Travel : X 450 Y 600 Z 330
Speed range : 20 - 18.000 rpm infinitely variable ( HSK 63 )

With the following accessories:

NC swivel rotary table 450 mm x 360 mm clamping surface
Vertical tool changer with 55 magazine positions ( HSK 63 )

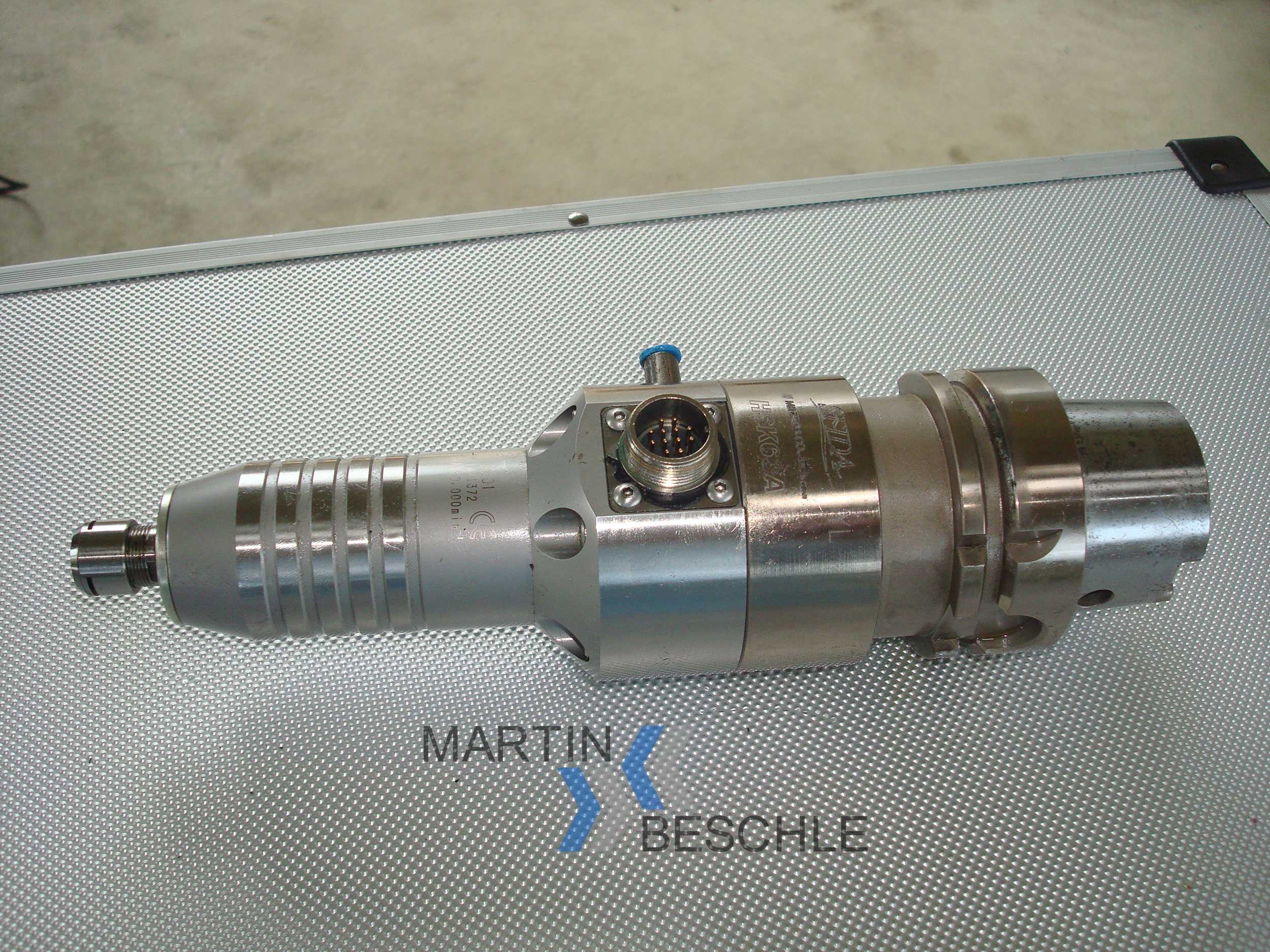

High-speed milling spindle SFIDA MT01CP 5000 rpm - 60000 rpm
Linear axes standard version
Internal coolant supply ( IKZ 80 bar )
Scraper belt conveyor left
Chip carriage 450 l

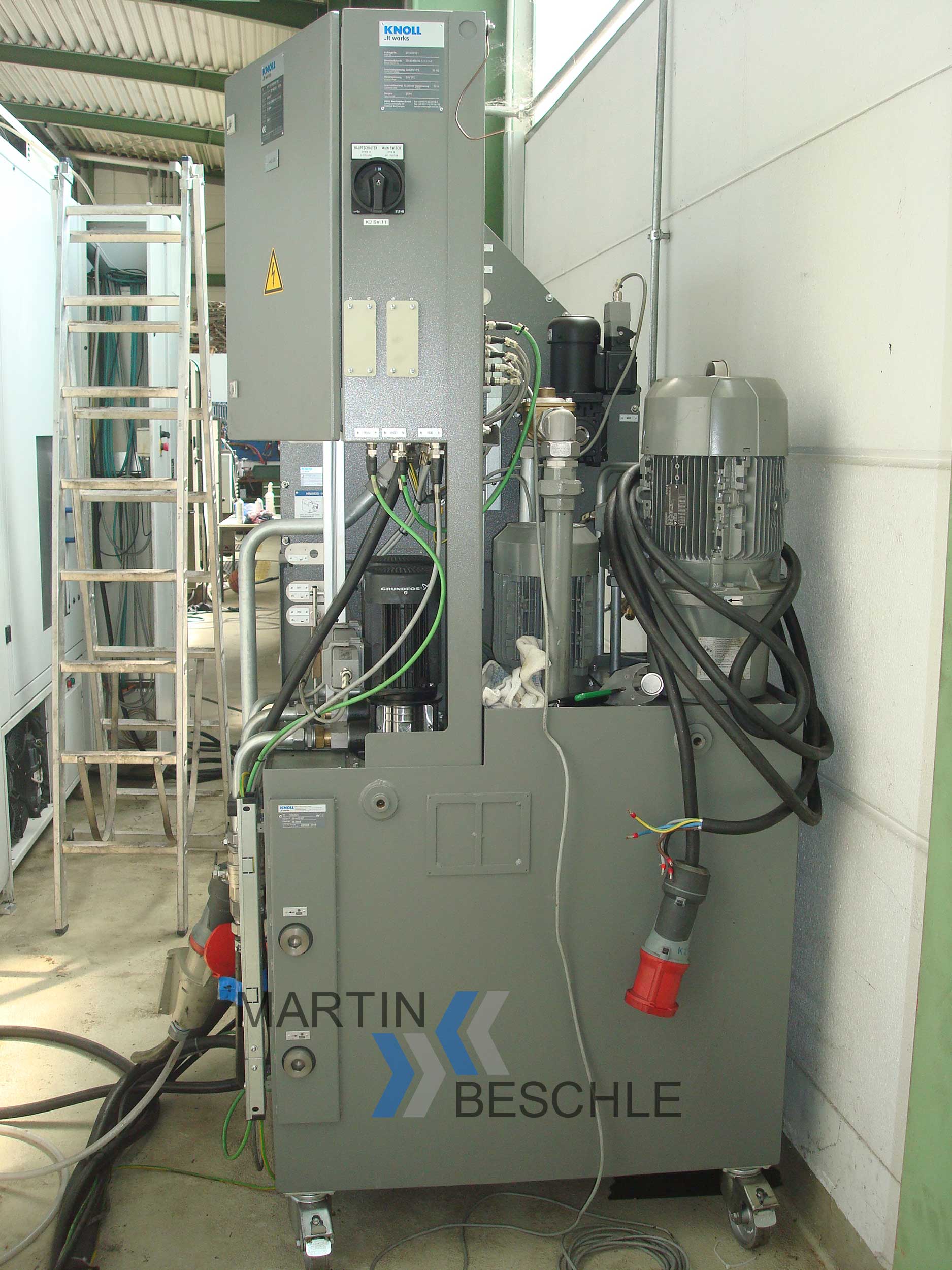

Coolant system
Chip pistol
Oil mist extraction
Blow-off device
Blowing air through the centre of the spindle
Chip pistol
Manual cabin door , Automatic cabin roof
Laminated safety glass
Rotating clear view window (Rotoclear)
Electr. heat compensation iTNC
Electr. handwheel
3 D touch probe Heidenhain
BLUM Wz-breakage/measurement
BDE signal
4 pieces Height adjustable machine shoes
Operating instructions
