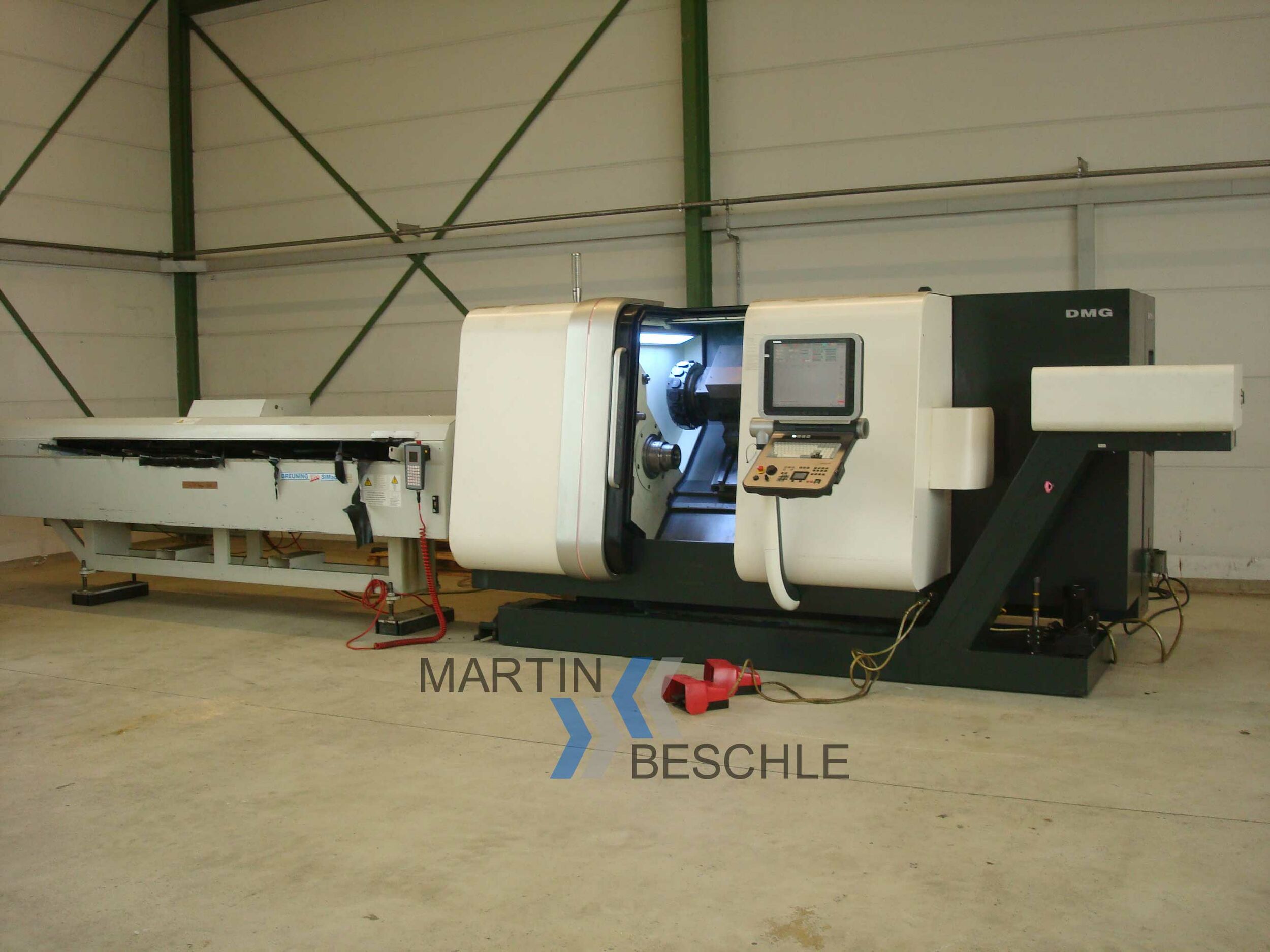

CNC Universal Lathe GILDEMEISTER CTX beta 500 V6

With control Heidenhain Manual iT Plus
Year of manufacture: 2010
Circulation O over bed: 700 mm
circulation O over facing slide: 410 mm
spindle bore: 87 mm
face travel ( X ) : 300 mm
longitudinal travel ( Z ) : 550 mm
Speed 25 - 5000 rpm

With the following accessories:

Sliding guard with internal lighting
12-position turret with 12 driven stations
C axis , Y axis ( +- 60 mm )
Various tool holders
Counter spindle ( 3 jaw chuck Schunk )
Hydraulic collet chuck
IRCO bar feeder chip conveyor
Coolant device
Operating instructions
