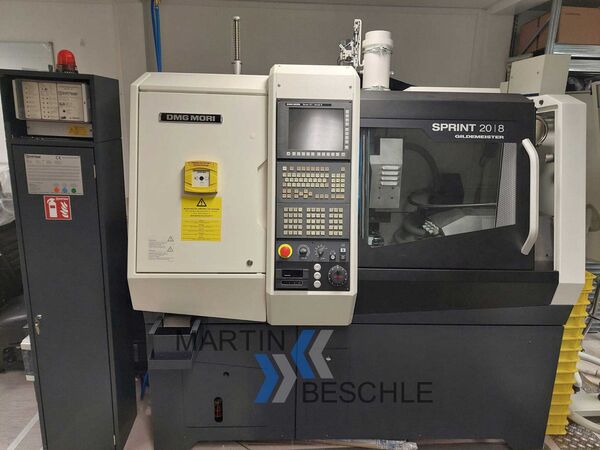

GILDEMEISTER SPRINT 20/8 CNC vertical turning machine

With Fanuc 32i control
Year of manufacture: 11/2019
Spindle bore: 20 mm

MAIN SPINDLE
Turning diameter: max. 20 mm
Speed range: max. 10,000 rpm
Stroke Z1:   60 mm

COUNTER SPINDLE

Turning diameter: max. 20 mm
Stroke X 2 : 220 mm
Stroke Z 2 : 170 mm
Speed:  max. 10,000 rpm

SLIDE 1
Stroke X 1:  50 mm
Stroke Y 1:  325 mm

SLIDE  Y 2
Stroke Y 2 :  85 mm

With the following accessories:
Full protective enclosure with interior lighting
Various tool holders
Tool holders for slides 1–3
4 driven tools with 4 spindles with ESX/ER 16 mountings
C-axis for main and counter spindles
Y-axis on carriages 1–2
2 cross slides
Workpiece unloading conveyor
4-colour signal light
Fire extinguishing system
Coolant system 165 l
(Pump capacity 90 l/min at 1 bar)

THE MACHINE IS IN AS-NEW CONDITION  !!

THE MACHINE HAS ONLY 110 PROGRAMME RUNNING HOURS !!
